Advanced Double Wall Tank 'PERMATANK'

Product Specification

NO	D/M(ℓ)	직 경	길 이	맨홀수	FRP두께	철판두께	형식번호	비고
1	500 D/M (100,000ℓ)	Ø3420	L11600	1	3.2㎜	10 T	SFT19-A1	PDF	CAD
2	300 D/M (60,000ℓ)	Ø3310	L7440	1	3.2㎜	8 T	SFT17-A1	PDF	CAD
3	250 D/M (50,000ℓ)	Ø2950	L7800	2	3.2㎜	8T	SFT04-B9-1	PDF	CAD
4	250 D/M (50,000ℓ)	Ø3025	L7445	1	3.2㎜	8T	SFT16-A3	PDF	CAD
5	250 D/M (50,000ℓ)	Ø3260	L6320	1	3.2㎜	8T	SFT16-A3-1	PDF	CAD
6	250 D/M (50,000ℓ)	Ø3030	L7440	1	3.2㎜	8T	SFT12-A2	PDF	CAD
7	250 D/M (50,000ℓ)	Ø3030	L7440	2	3.2㎜	8T	SFT12-A3	PDF	CAD
8	200 D/M (40,000ℓ)	Ø2720	L7440	2	3.2㎜	8T	SFT04-C1-5	PDF	CAD
9	200 D/M (40,000ℓ)	Ø2720	L7440	2	3.2㎜	7T	SFT04-C1-6	PDF	CAD
10	200 D/M (40,000ℓ)	Ø2550	L8360	2	3.2㎜	7T	SFT04-C1-7	PDF	CAD
11	200 D/M (40,000ℓ)	Ø2900	L6400	2	3.2㎜	7T	SFT04-C1-8	PDF	CAD
12	200 D/M (40,000ℓ)	Ø3020	L6000	2	3.2㎜	7T	SFT04-C1-9	PDF	CAD
13	200 D/M (40,000ℓ)	Ø2700	L7440	1	3.2㎜	7T	SFT12-A6	PDF	CAD
14	200 D/M (40,000ℓ)	Ø2700	L7440	2	3.2㎜	7T	SFT12-A7	PDF	CAD
15	175 D/M (35,000ℓ)	Ø2330	L8910	2	3.2㎜	7T	SFT07-B3	PDF	CAD
16	165 D/M (33,000ℓ)	Ø2900	L5280	2	3.2㎜	8T	SFT10-A2	PDF	CAD
17	150 D/M (30,000ℓ)	Ø2720	L5610	2	3.2㎜	8T	SFT06-B7-1	PDF	CAD
18	150 D/M (30,000ℓ)	Ø3025	L4400	2	3.2㎜	7T	SFT06-B7-2	PDF	CAD
19	150 D/M (30,000ℓ)	Ø2700	L5610	1	3.2㎜	7T	SFT12-A8	PDF	CAD
20	150 D/M (30,000ℓ)	Ø2700	L5610	2	3.2㎜	7T	SFT12-A9	PDF	CAD
21	150 D/M (30,000ℓ)	Ø2330	L7560	2	3.2㎜	7T	SFT12-A9-1	PDF	CAD
22	120 D/M (24,000ℓ)	Ø2600	L4900	2	3.2㎜	7T	SFT12-A4	PDF	CAD
23	100 D/M (20,000ℓ)	Ø2230	L5610	2	3.2㎜	7T	SFT07-B1	PDF	CAD
24	100 D/M (20,000ℓ)	Ø2420	L4690	2	3.2㎜	8T	SFT07-B1-1	PDF	CAD
25	100 D/M (20,000ℓ)	Ø2700	L3770	1	3.2㎜	7T	SFT12-B2	PDF	CAD
26	100 D/M (20,000ℓ)	Ø2700	L3770	2	3.2㎜	7T	SFT12-B1	PDF	CAD
27	100 D/M (20,000ℓ)	Ø2330	L5180	2	3.2㎜	7T	SFT12-B1-1	PDF	CAD
28	75 D/M (15,000ℓ)	Ø2000	L5200	2	3.2㎜	7T	SFT07-B2	PDF	CAD
29	50 D/M (10,000ℓ)	Ø1810	L4300	2	3.2㎜	7T	SFT04-C1-3-1	PDF	CAD
30	50 D/M (10,000ℓ)	Ø1600	L5280	1	3.2㎜	8T	SFT10-A1	PDF	CAD
31	45 D/M (9,000ℓ)	Ø1800	L3830	1	3.2㎜	7 T	SFT16-A9	PDF	CAD
32	25 D/M (5,000ℓ)	Ø1500	L3048	1	3.2㎜	6T	SFT11-A1	PDF	CAD
ⓐ 몸통은 맞대기 용접 ⓑ 경판부위 겹침 용접

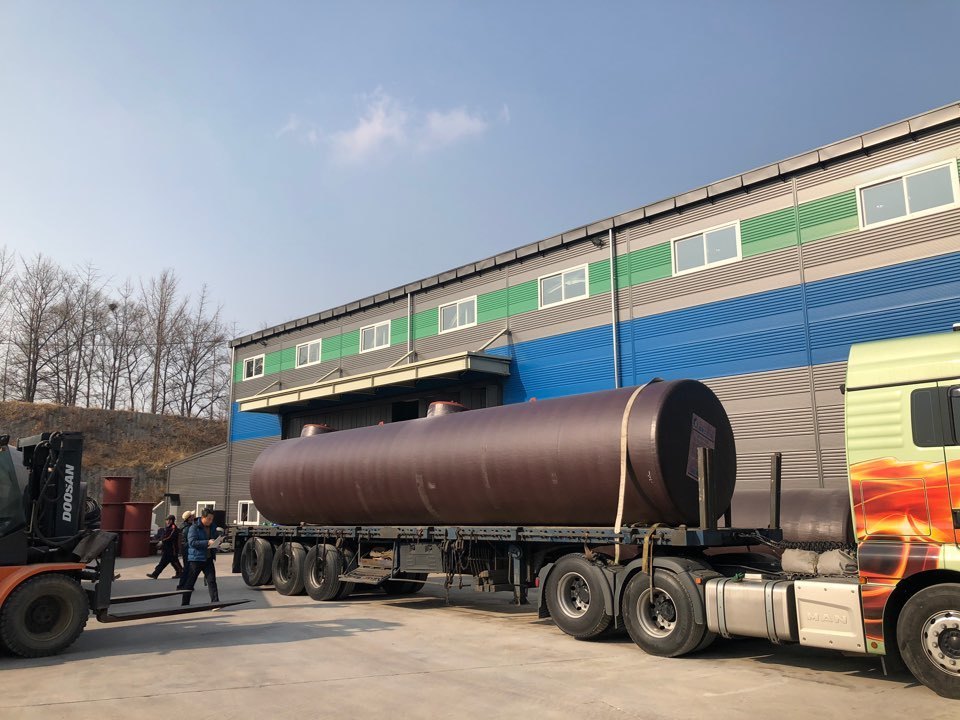

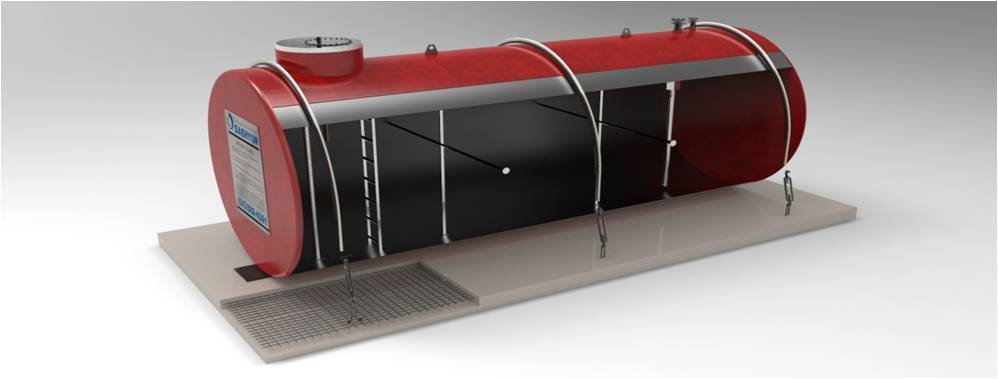

Double Wall Tank

Reinforced plastic double wall tank is a double-walled oil storage tank for underground burial that the
U.S. Steel Tank Institute obtained a patent for by coating rust-proof Fiberglass Reinforced Plastic (FRP)
on the steel outer wall for the first time in the world in 1995. Technical partnership with the U.S. STI,
in domestic production, MST has been exclusively producing tanks since 1997.

Through continuous exchange with STI, the original manufacturer of oil tanks, we were not simply
licensed for the technology, but we are transferred to the technology that conducts annual exchange to
receive improving technology and thorough quality inspection. In addition, about 100 companies from
around the globe that have contacted a partnership with STI gather to have discussion on the product
and its problems.

① Multi-Layer FRP(3.2mm)

② Welding protection cotton (0.5mm)

③ Polyester Film Wrap (0.5mm)

④ Polyethylene Mesh (0.5mm)

⑤ Steel Tank (8.0mm) + 0.1mm

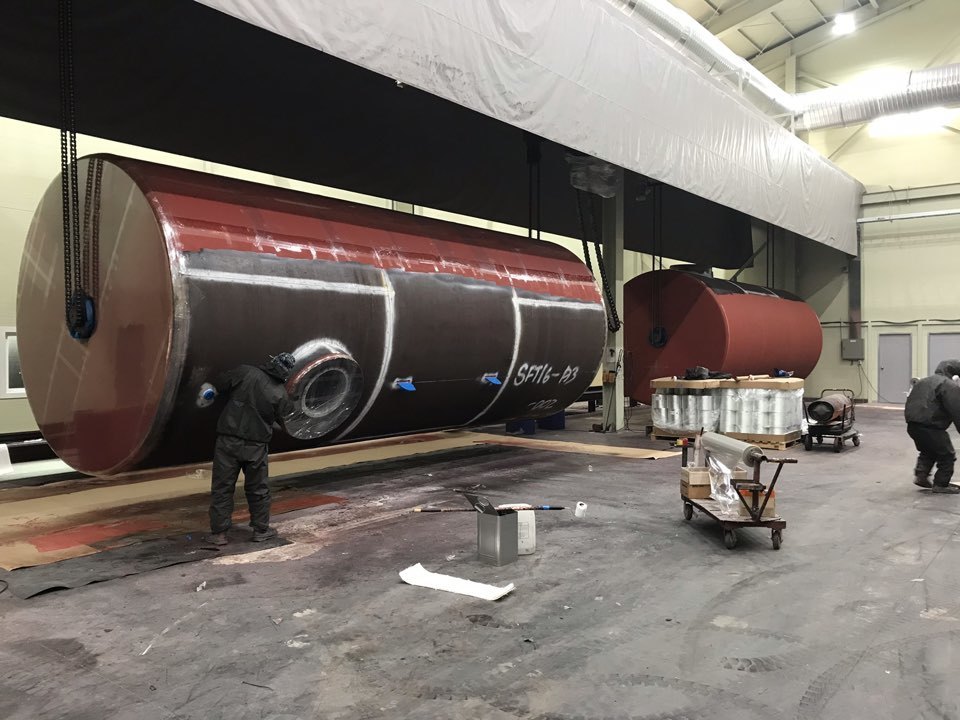

Fiberglass Reinforced Plastic

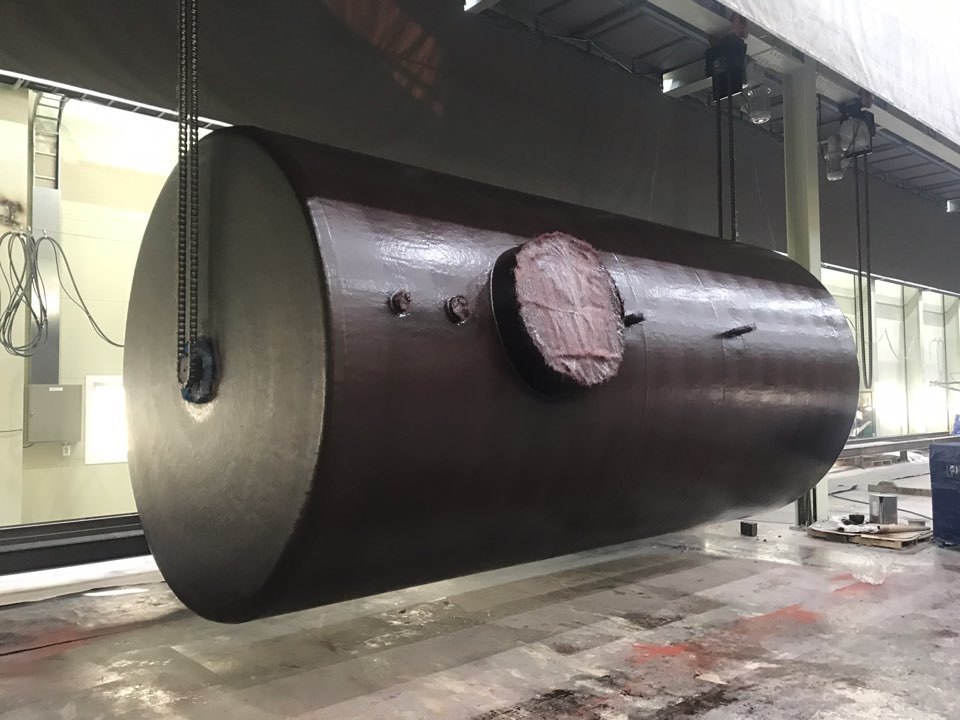

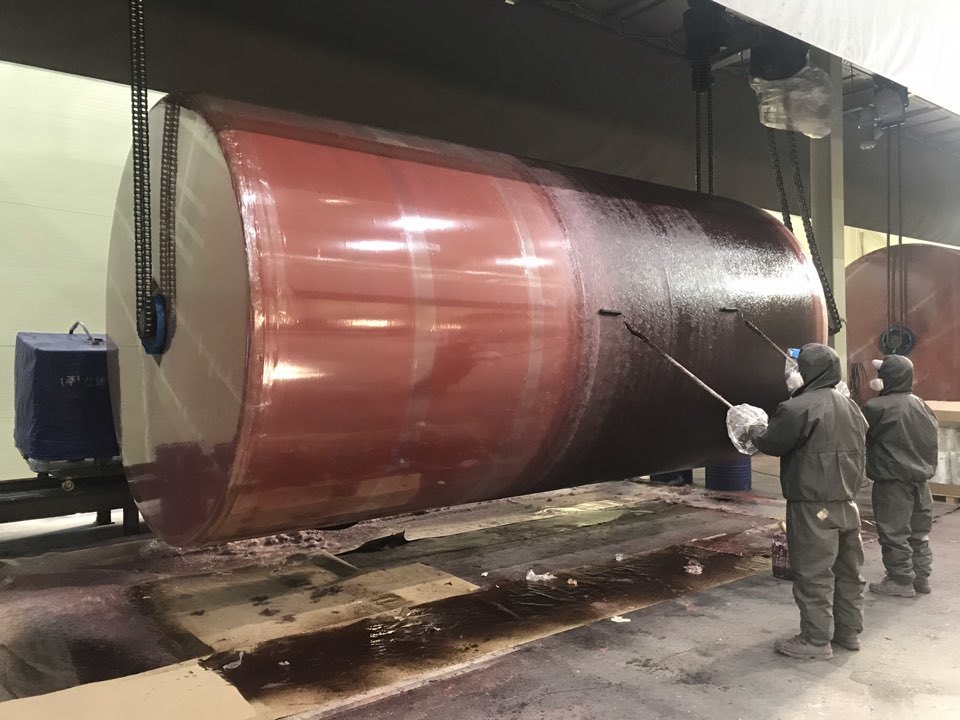

It is a material that combines aromatic nylon fibers such as fiberglass, carbon fiber, and Kevlar with
thermosetting resins such as unsaturated polyester and epoxy resin. It has the advantages of being
stronger than iron, lighter than aluminum, non-rusting and easy to process.

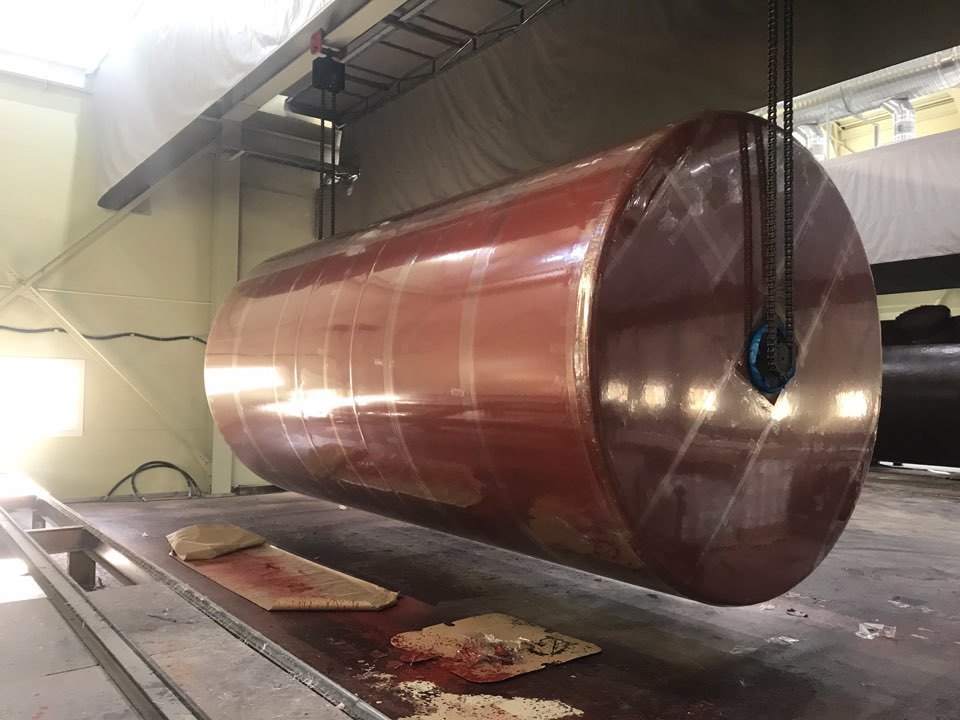

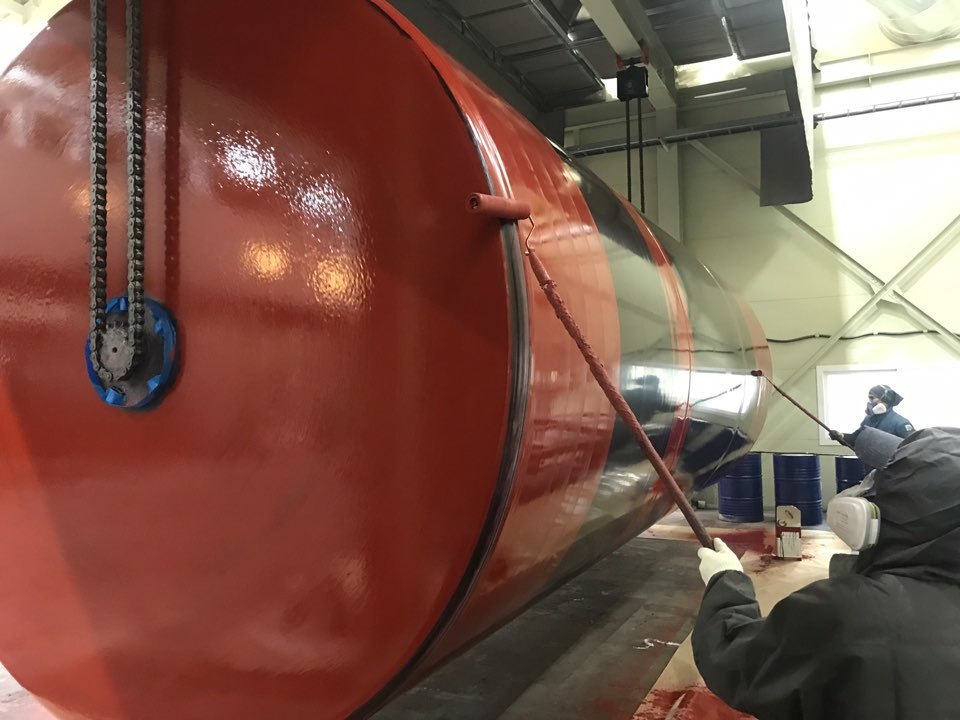

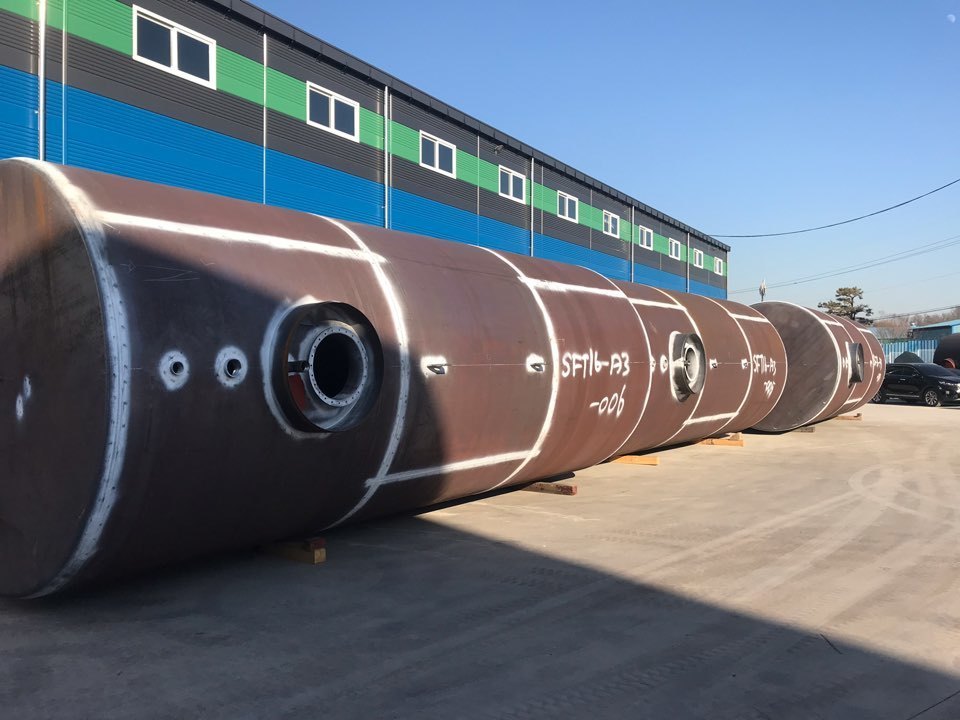

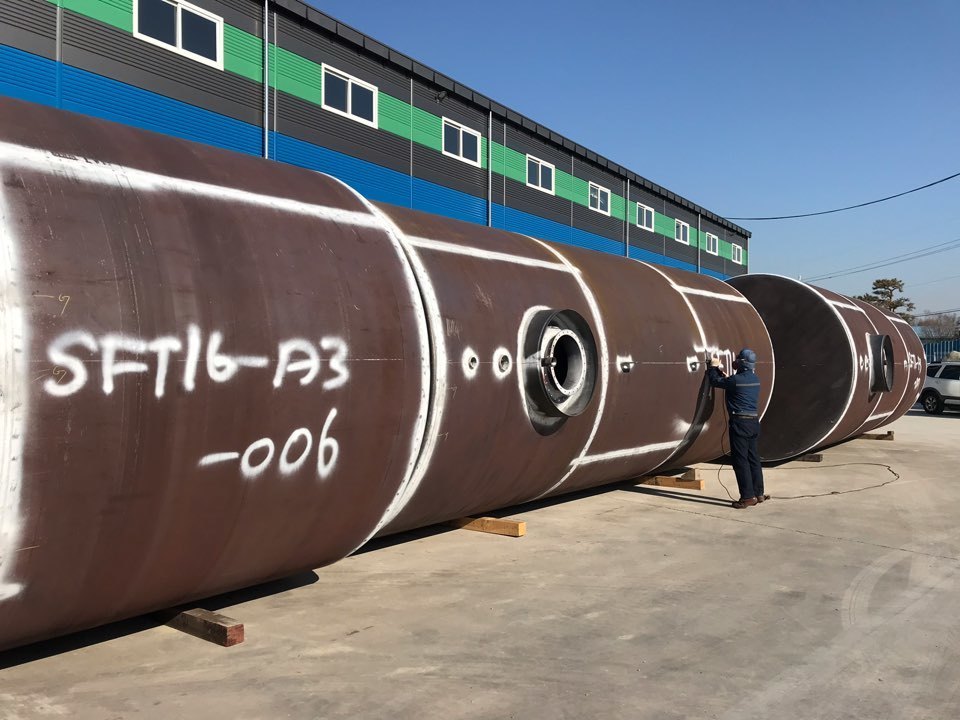

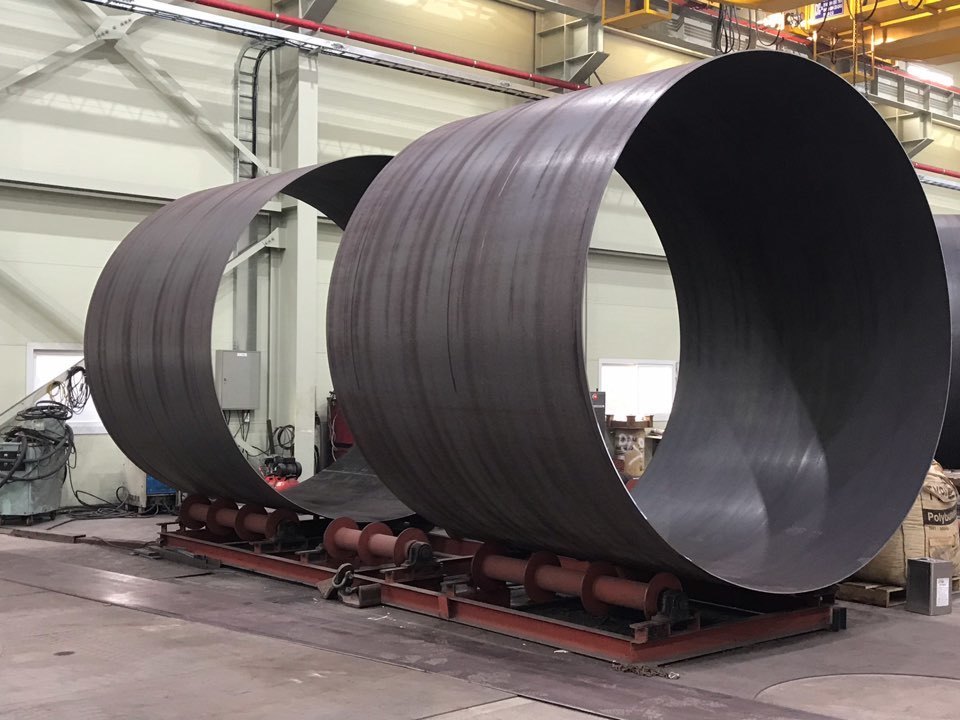

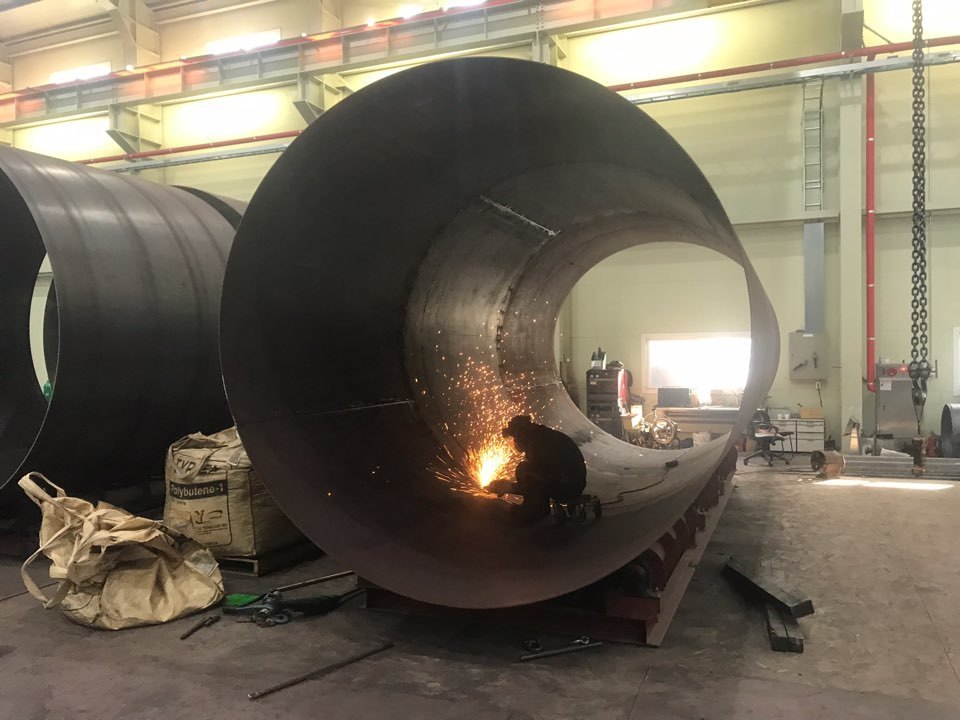

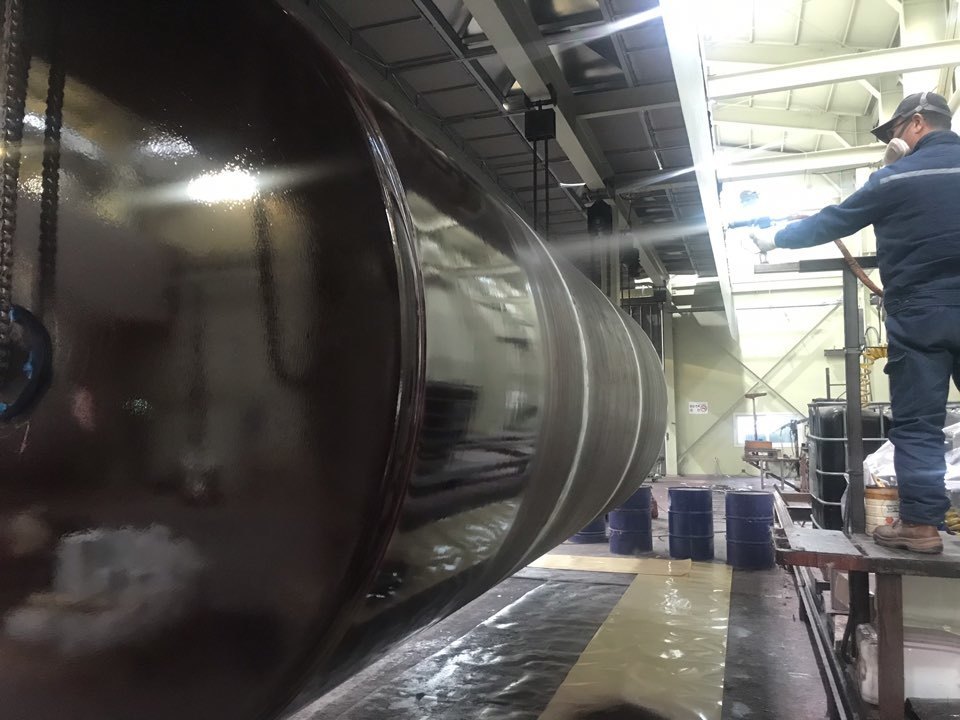

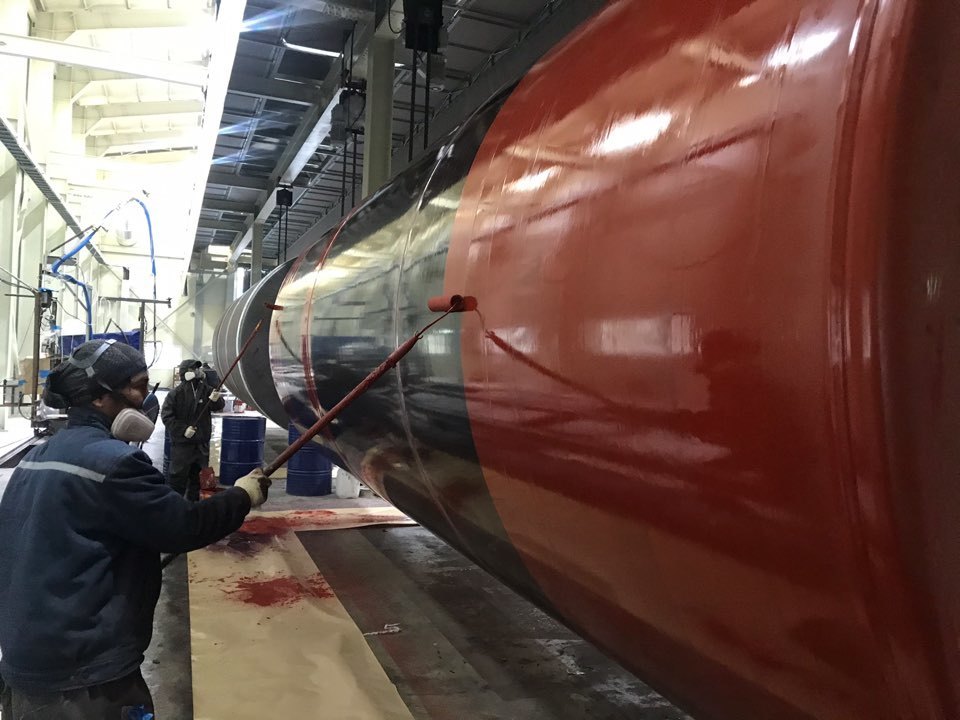

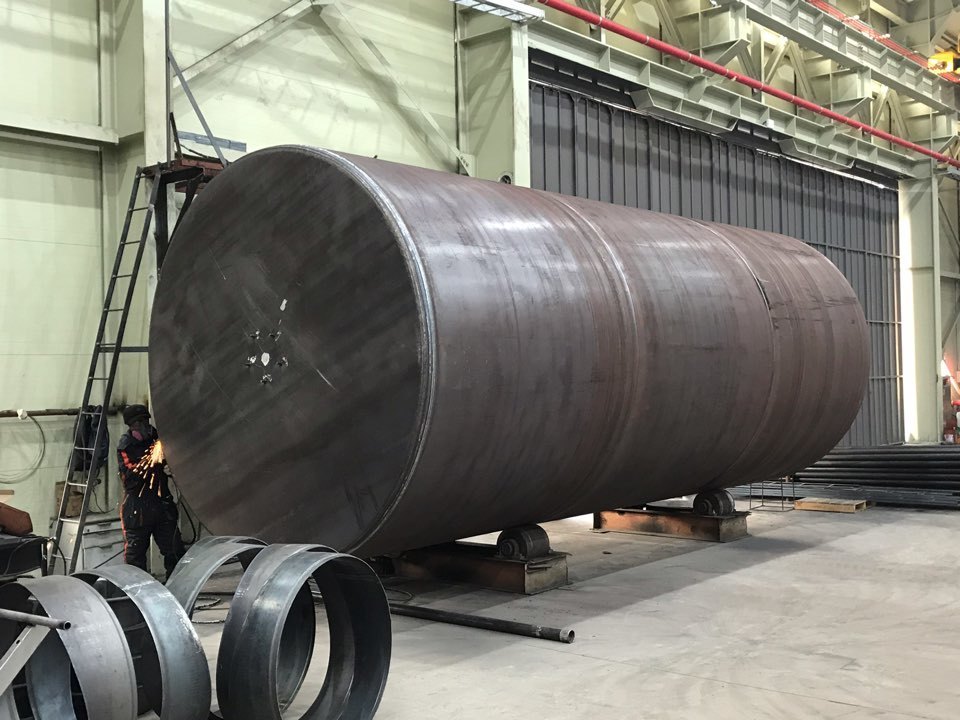

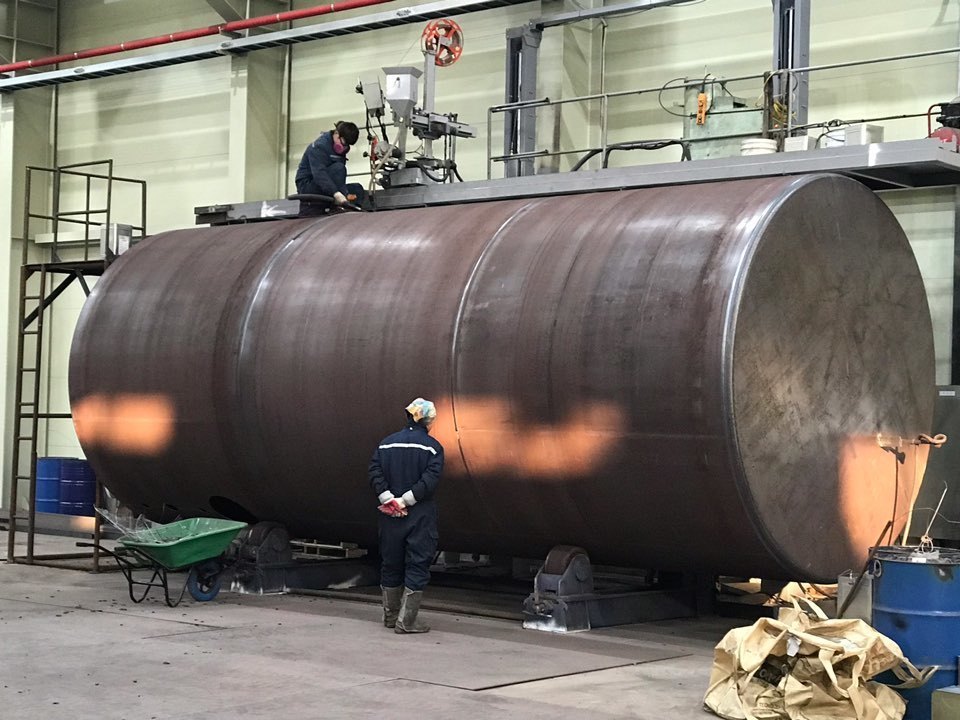

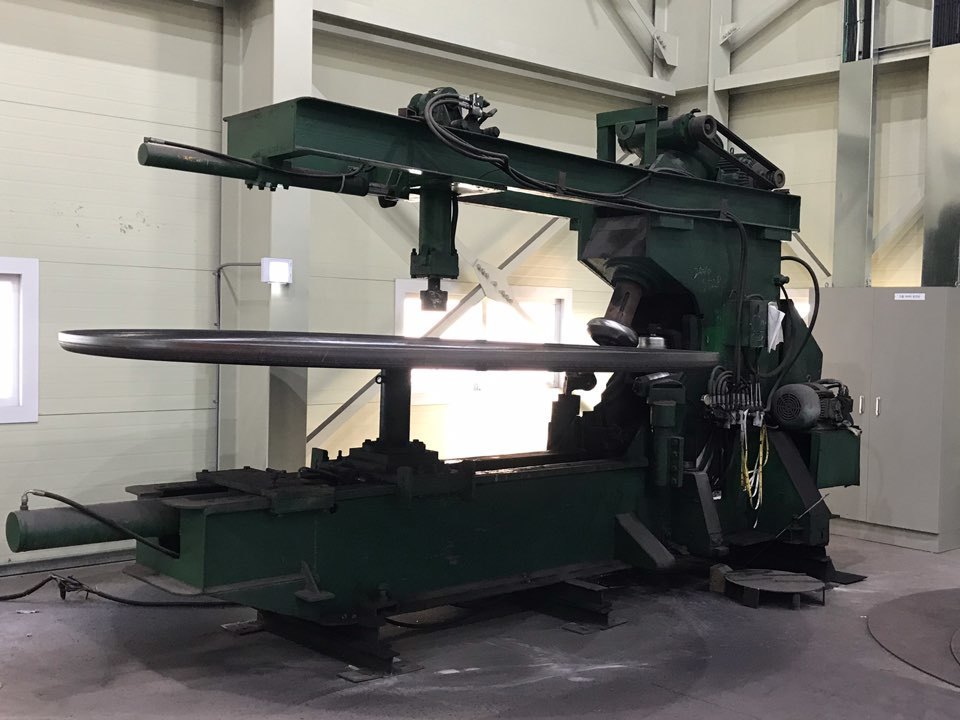

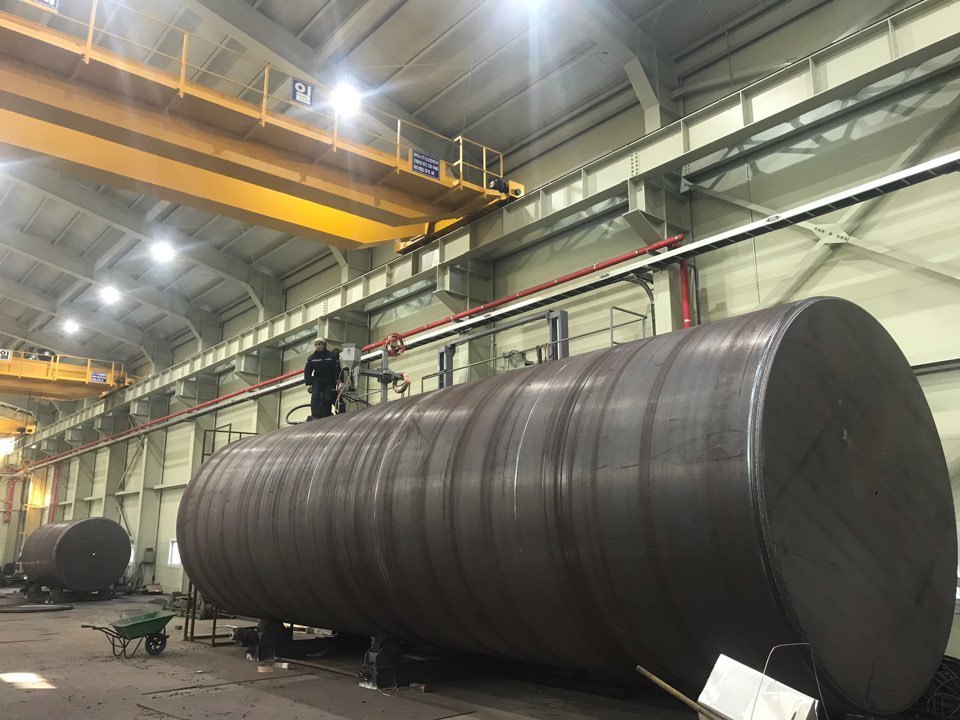

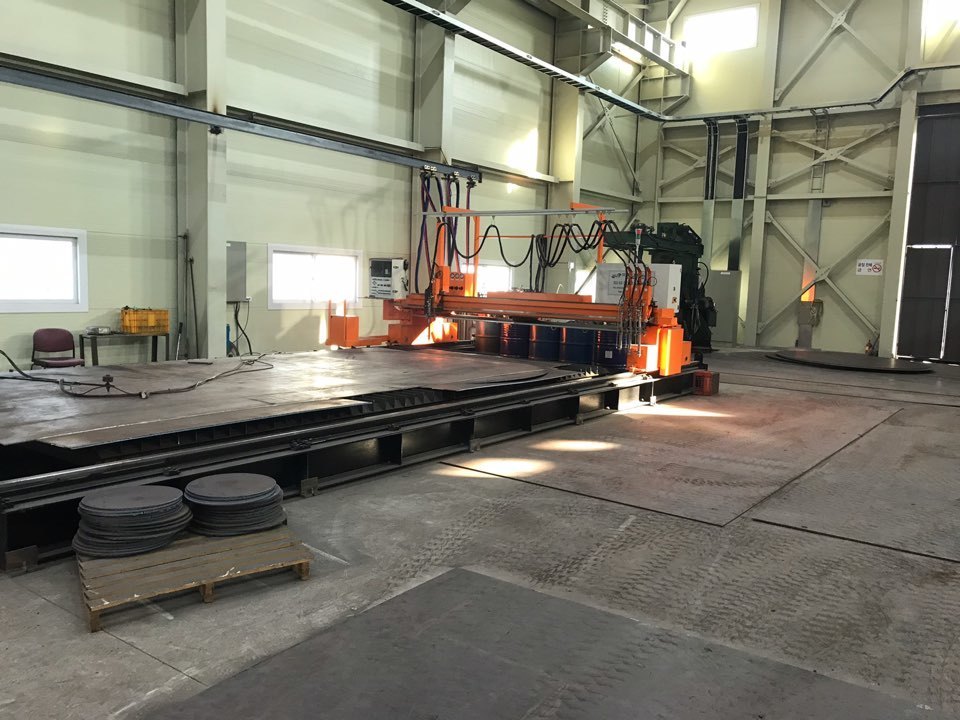

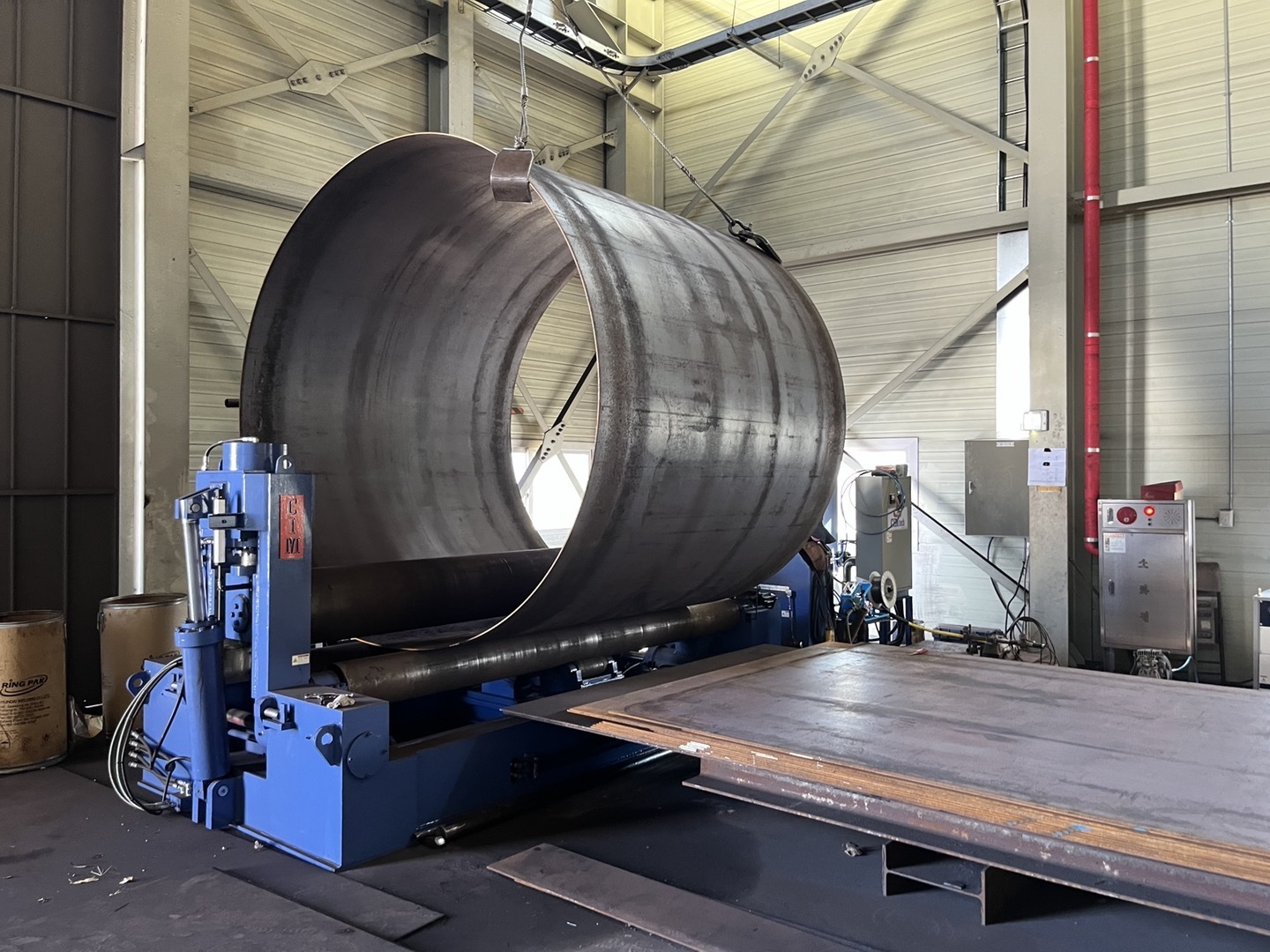

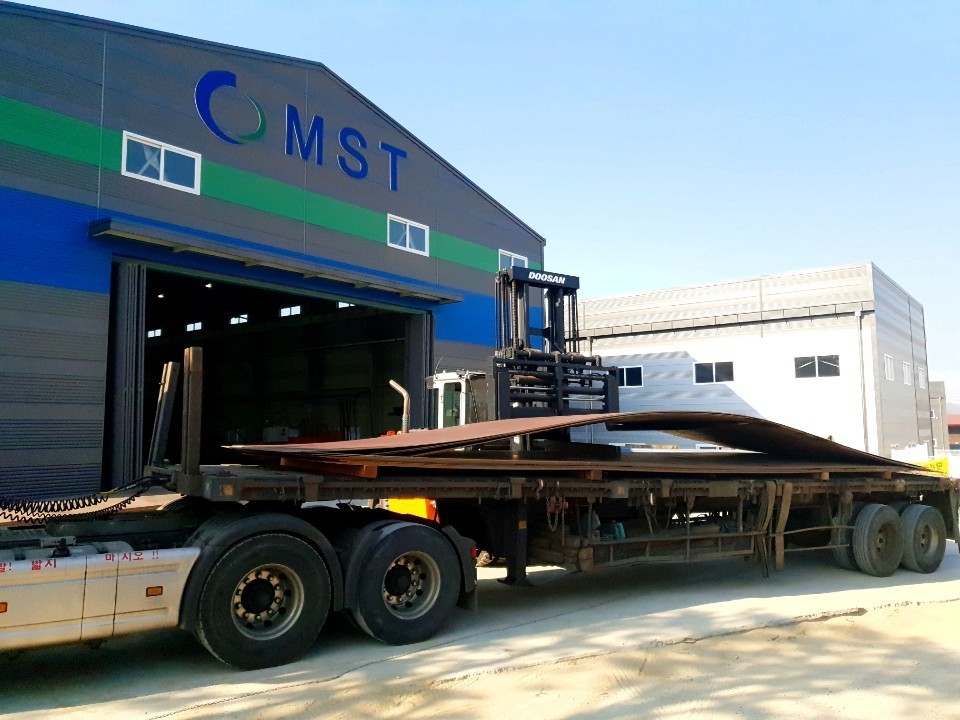

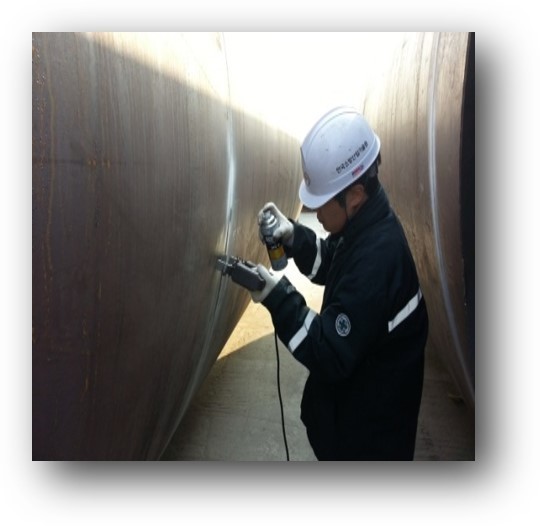

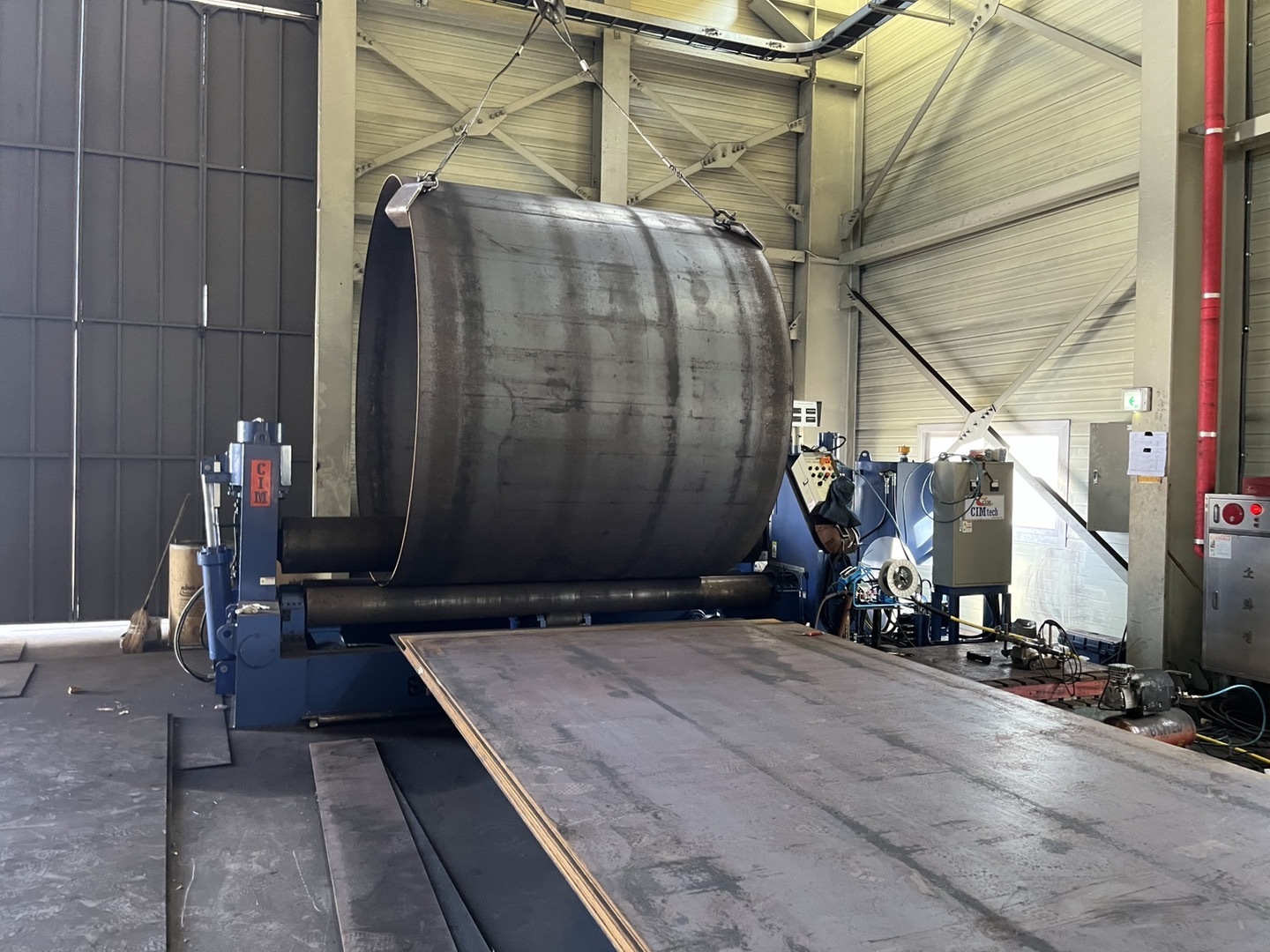

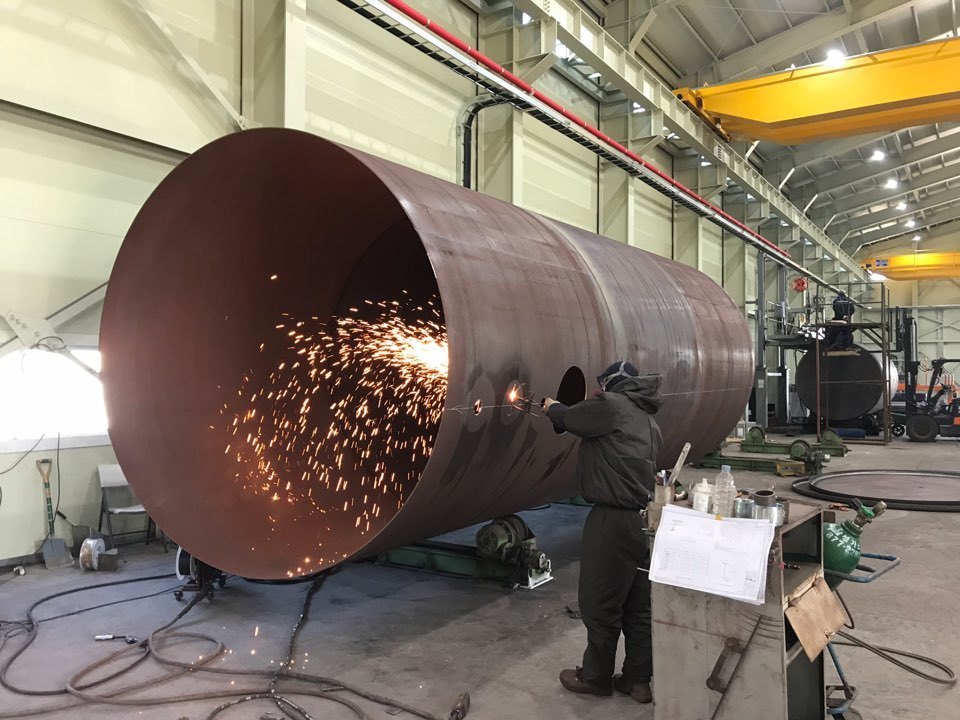

Manufacturing Process
