FIREGUARD TANK

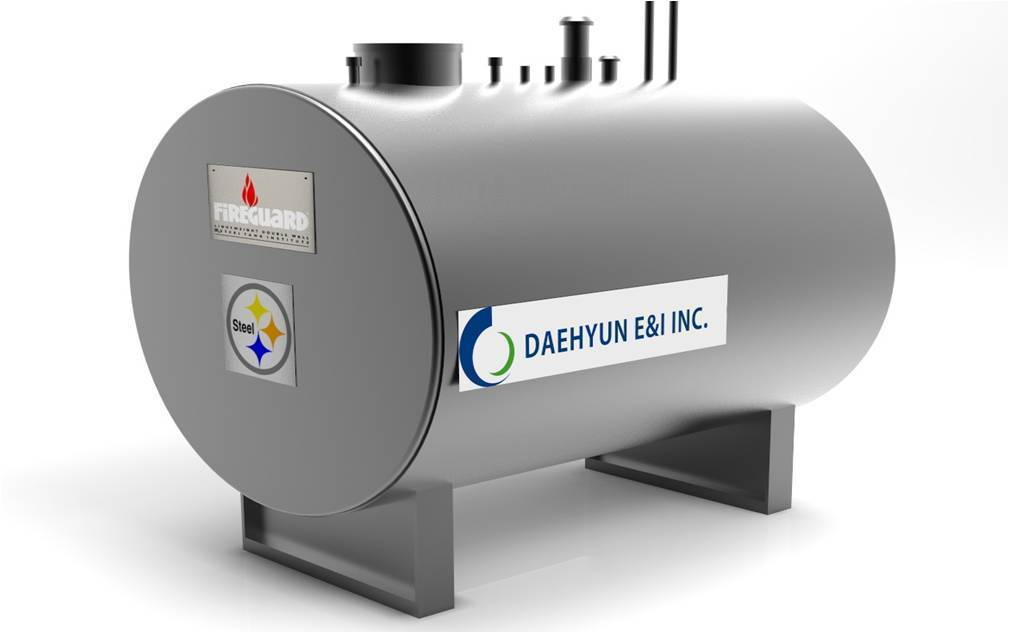

Fireguard® UL-2085 Tank

Fireguard® Tank

Fireguard® is a "Protected" Fire Rated Aboveground Storage Tank with projectile, impact resistant and stream hose test ratings. This is a steel double wall aboveground storage tank with interstitial monitoring capabilities and a 2-hour fire rating. It can be built in horizontal and vertical configurations.

Each tank contains 3 inches of light-weight insulation material which has 75% less weight than traditional concrete insulations. Fireguard tanks are built to Underwriters Laboratories, UL-142 and UL 2085 specifications.

Unlike concrete encased tanks, Fireguard® tanks’ steel outer wall protects the insulation, eliminating the problem of cracking and spalling concrete. Because of its unique construction, each tank is pressure-testable in the factory and at the jobsite.

이미지명
이미지명
이미지명
이미지명

Features

이미지명

- 300 to 50,000 gallon capacity
- UL142 & 2085
- NFPA 30/30A
- Secondarily contained, Ballistics and Impact tested
- Compatible with gasoline, diesel, fuel oil, ethanol, methanol and additives
- Primary and secondary tank can be tightness tested on site with standard testing procedures, unlike other designs
- Steel outer wall provides low cost maintenance and protection from weathering
- 30 years warranty

이미지명

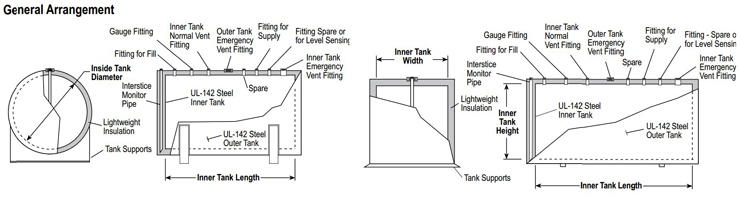

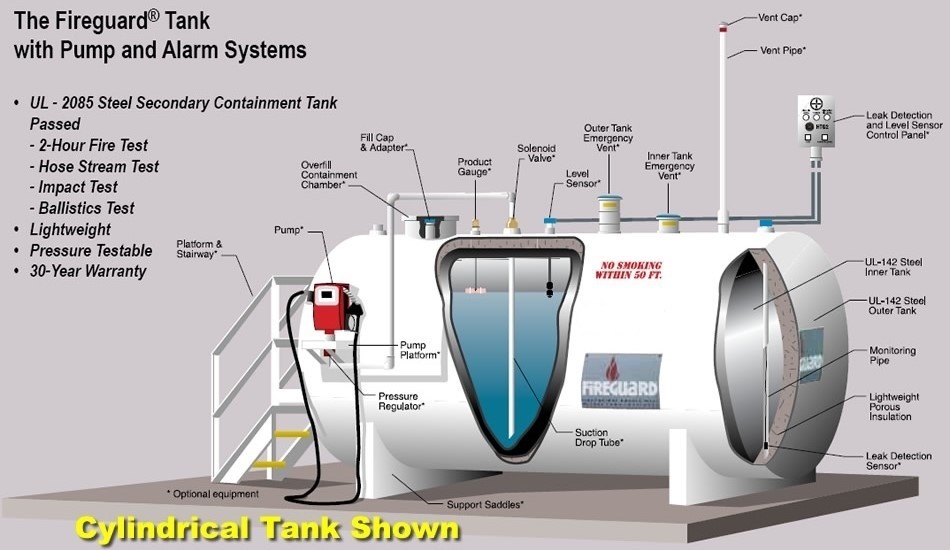

Fireguard® Tank Structure

이미지명
이미지명

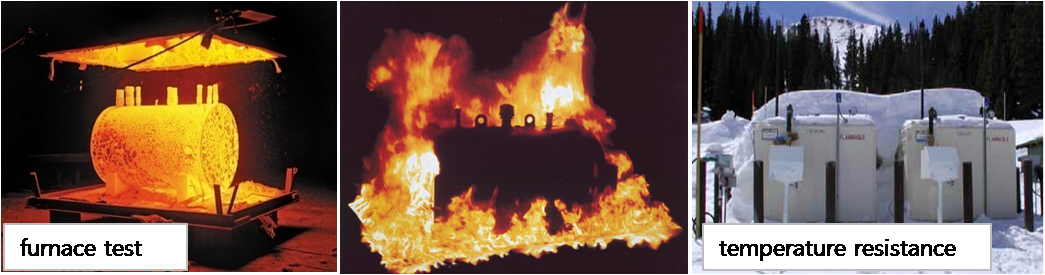

Fireguard® Tank Onsite Pictures

이미지명
이미지명
이미지명
이미지명
이미지명
이미지명
이미지명
이미지명
이미지명
이미지명
